Semi-automatic dual-station side plane dual-use assembly machine

Max. spraying area per station

600*400mm

Duplex Maximum Shell Size

950*400mm

Duplex Minimum Shell Size

90*50mm

Color
For color customization needs , Contact Us !

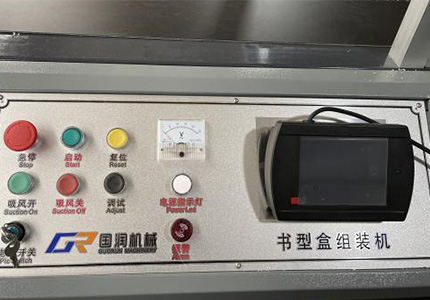

Computerized control system
Computerized control system

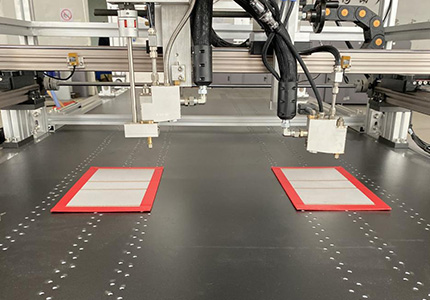

Flat side, glue spraying device
Flat side, glue spraying device

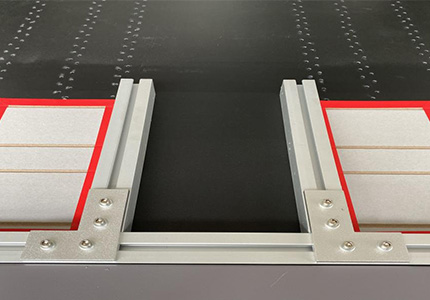

Shell position
Shell position

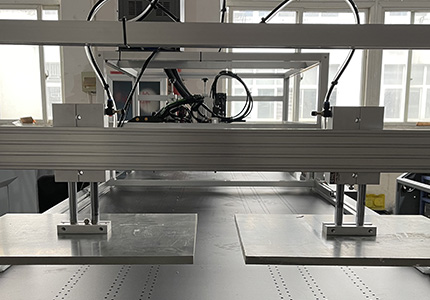

Pressure bubble device
Pressure bubble device
Semi-automatic dual-station side plane dual-use assembly machine

Wider range of use, anisotropic box bottomless box, handicrafts, oversized, extra small gift box, outer box inside the box double combination can be convenient and quick to use the production, to provide users with more diversified product production.

Parameter List

Model

GR-950ZA

Maximum shell size per station

950*550mm

Minimum shell size per station

90*50mm

Maximum inner box size for one station

600*550*150mm

Maximum inner box size for one station

50*50*10mm

Max. spraying area per station

600*400mm

Duplex Maximum Shell Size

950*400mm

Duplex Minimum Shell Size

90*50mm

Maximum inner box size for double station

600*400*150mm

Duplex Maximum Inner Box Size

50*50*10mm

Max. spraying area of double station

600*550mm

Production speed

0-30pcs/min

Pneumatic pressure

0.7mps

Machine power

5.5kw/380v

Machine size

3700*1600*1900mm

Weight

850kg

Highlights

1. Adopting the latest computer control system, it can spray bar, dot, fog graphics at will, and even spray fonts and logos, etc. It saves glue, has strong adhesion, and has no leakage.


2. High precision computer positioning, leather shell and inner box or outer box and inner box are tightly bonded, no bubbles, no scratches.


3. Simple to use, easy to operate, high efficiency, single-head daily output of up to 7,000 or so, double-head daily output of up to 15,000 or so.


4. Mobile handheld touch screen, user-friendly design, easy to adjust, support for graphic import, each replacement of a product debugging only 5 minutes, greatly reducing the debugging time required for the replacement of several products.




5. The equipment is easy to maintain, easy to understand and learn, stable performance has been praised by users at home and abroad.
